INCH SYSTEM

ONE-TOUCH FITTINGS

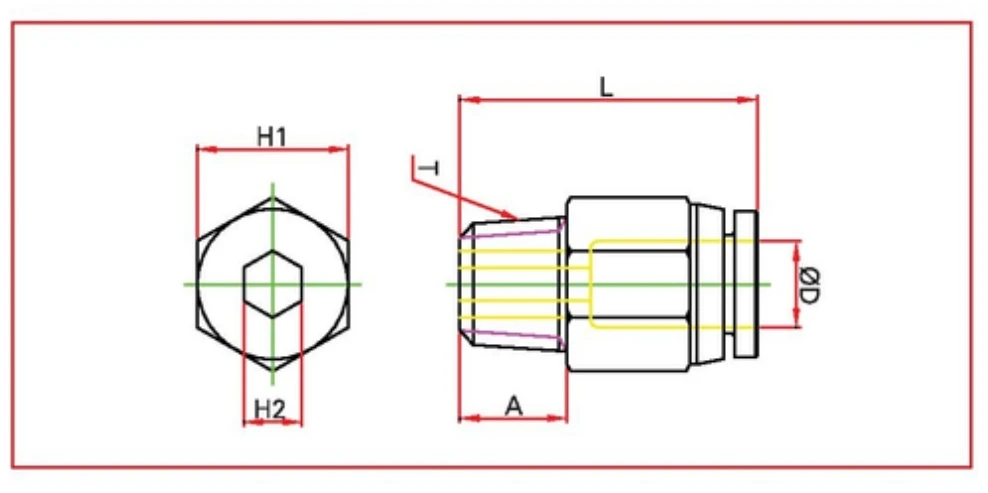

PC male straight

MODEL	ØD	T (Thread)	L	A	H1 (HEX)	H2 (HEX)	Q'ty per bag	Q'ty per box
PC 5/32-UNF	5/32	UNF 10/32	20.8	4	7/16	2	10	100
PC 5/32-N01	5/32	NPT 1/8	20	7.5	7/16	3	10	100
PC 5/32-N02	5/32	NPT 1/4	19.4	9.5	7/16	3	10	100
PC 5/32-N03	5/32	NPT 3/8	20	10.5	11/16	3	10	100
PC 3/16-UNF	3/16	UNF 10/32	20.8	4	7/16	3	10	100
PC 3/16-N01	3/16	NPT 1/8	21	7.5	1/2	3	10	100
PC 3/16-N02	3/16	NPT 1/4	18	9.5	9/16	3	10	100
PC 3/16-N03	3/16	NPT 3/8	20	11	1/2	4	10	100
PC 1/4-UNF	1/4	UNF 10/32	21	4	1/2	4	10	100
PC 1/4-N01	1/4	NPT 1/8	21	7.5	1/2	4	10	100
PC 1/4-N02	1/4	NPT 1/4	22.5	9.5	9/16	4	10	100
PC 1/4-N03	1/4	NPT 3/8	23.7	10.5	11/16	4	10	100
PC 1/4-N04	1/4	NPT 1/2	24.6	13.5	7/8	4	10	50
PC 5/16-N01	5/16	NPT 1/8	22	7.5	9/16	5	10	100
PC 5/16-N02	5/16	NPT 1/4	25	9.5	9/16	5	10	100
PC 5/16-N03	5/16	NPT 3/8	22	10.5	11/16	5	10	100
PC 5/16-N04	5/16	NPT 1/2	26.5	13.5	7/8	5	10	50
PC 3/8-N01	3/8	NPT 1/8	29.1	7.5	11/16	5	10	100
PC 3/8-N02	3/8	NPT 1/4	31	9.5	11/16	6	10	100
PC 3/8-N03	3/8	NPT 3/8	28.5	10.5	11/16	8	10	50
PC 3/8-N04	3/8	NPT 1/2	28.5	13.5	7/8	8	10	50
PC 1/2-N01	1/2	NPT 1/8	31.7	7.5	7/8	5	10	50
PC 1/2-N02	1/2	NPT 1/4	33	9.5	7/8	6	10	50
PC 1/2-N03	1/2	NPT 3/8	30.5	10.5	7/8	8	10	50
PC 1/2-N04	1/2	NPT 1/2	32	13.5	7/8	8	10	50

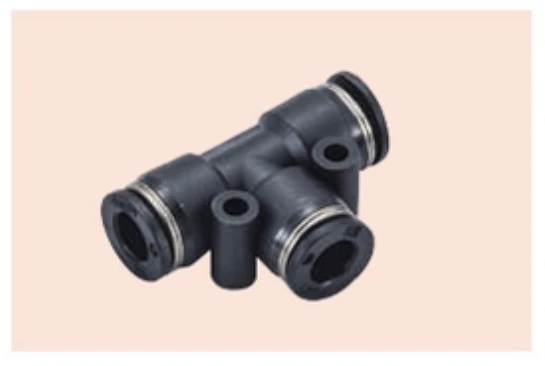

PUT union tee

MODEL	ØD	E	L	M1	M2	C	Q'ty per bag	Q'ty per box
PUT 5/32	5/32	36.5	24	7	14	3.2	10	100
PUT 3/16	3/16	36.5	24	7	14	3.2	10	100
PUT 1/4	1/4	37.5	25.5	8	16	3.2	10	50
PUT 5/16	5/16	44.5	29.5	9	18	3.2	10	50
PUT 3/8	3/8	55	37	12	24	4.2	5	25
PUT 1/2	1/2	58	39	13.5	27	4.2	5	25

POC Round male straight

MODEL	ØD	T (Thread)	L	A	H (HEX)	Q'ty per bag	Q'ty per box
POC 5/32-UNF	5/32	UNF 10/32	20.2	4	3	10	100
POC 5/32-N01	5/32	NPT 1/8	20	7.5	3	10	100
POC 5/32-N02	5/32	NPT 1/4	19	9.5	3	10	100
POC 3/16-UNF	3/16	UNF 10/32	19.5	4	2	10	100
POC 3/16-N01	3/16	NPT 1/8	20	7.5	3	10	100
POC 3/16-N02	3/16	NPT 1/4	18	9.5	4	10	100
POC 1/4-UNF	1/4	UNF 10/32	20.5	4	2	10	100
POC 1/4-N01	1/4	NPT 1/8	21	7.5	4	10	100
POC 1/4-N02	1/4	NPT 1/4	22.4	9.5	4	10	100
POC 5/16-N01	5/16	NPT 1/8	26	7.5	5	10	100
POC 5/16-N02	5/16	NPT 1/4	25	9.5	5	10	100
POC 5/16-N03	5/16	NPT 3/8	22	10.5	5	10	100
POC 3/8-N01	3/8	NPT 1/8	29	7.5	5	10	100
POC 3/8-N02	3/8	NPT 1/4	31.3	9.5	6	10	100
POC 3/8-N03	3/8	NPT 3/8	28.5	10.5	8	10	50
POC 3/8-N04	3/8	NPT 1/2	28.5	13.5	8	10	50
POC 1/2-N02	1/2	NPT 1/4	33	9.5	6	10	50
POC 1/2-N03	1/2	NPT 3/8	30.1	10.5	8	10	50
POC 1/2-N04	1/2	NPT 1/2	32.5	13.5	8	10	50

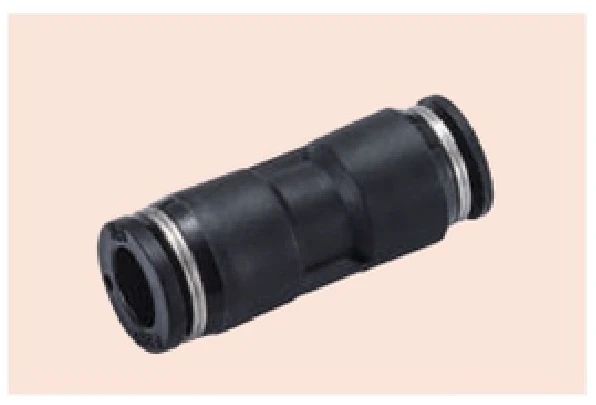

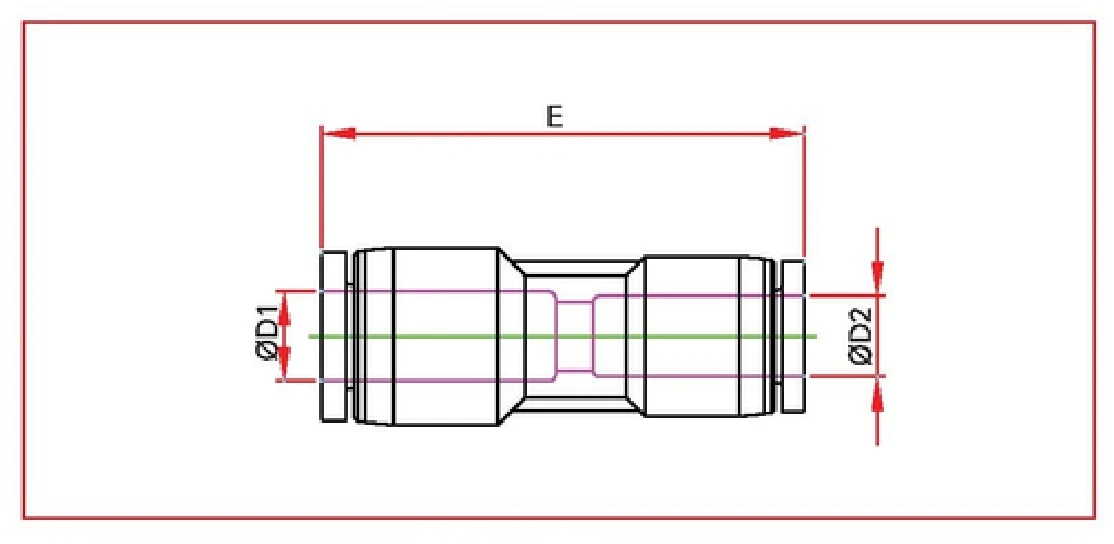

PG reducer

MODEL	ØD1	ØD2	E	Q'ty per bag	Q'ty per box
PG 3/16-5/32	3/16	5/32	33	10	100
PG 1/4-5/32	1/4	5/32	34	10	100
PG 1/4-3/16	1/4	3/16	34	10	100
PG 5/16-5/32	5/16	5/32	36	10	100
PG 5/16-1/4	5/16	1/4	36	10	100
PG 3/8-1/4	3/8	1/4	42.5	10	50
PG 3/8-5/16	3/8	5/16	42.5	10	50
PG 1/2-5/16	1/2	5/16	47.5	10	50
PG 1/2-3/8	1/2	3/8	47.5	10	50

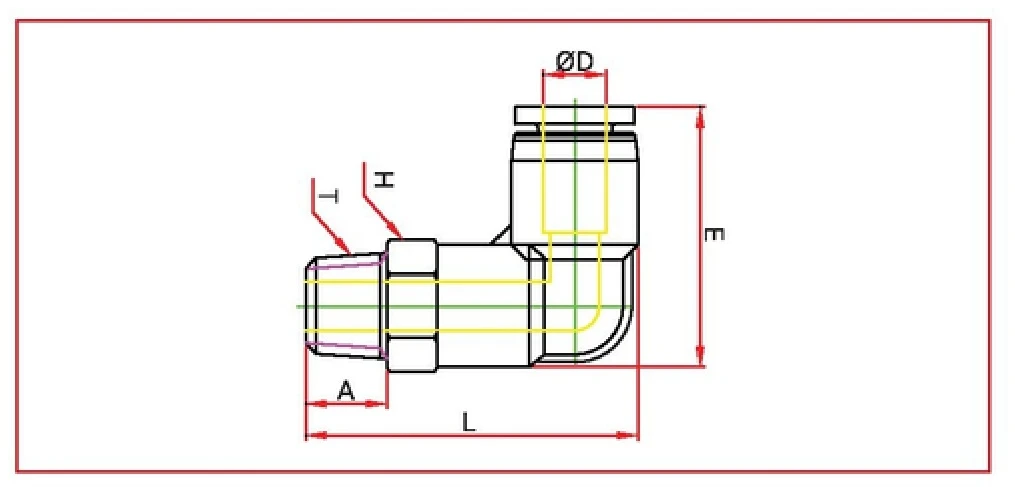

PL male elbow

MODEL	ØD	T (Thread)	E	L	A	H (HEX)	Q'ty per bag	Q'ty per box
PL 5/32-UNF	5/32	UNF 10/32	23	26.5	4	7/16	10	100
PL 5/32-N01	5/32	NPT 1/8	23	30.3	7.5	7/16	10	100
PL 5/32-N02	5/32	NPT 1/4	23	32.7	9.5	7/16	10	100
PL 3/16-UNF	3/16	UNF 10/32	23	26.5	4	7/16	10	100
PL 3/16-N01	3/16	NPT 1/8	23	30.3	7.5	7/16	10	100
PL 3/16-N02	3/16	NPT 1/4	23	32.7	9.5	9/16	10	100
PL 3/16-N03	3/16	NPT 3/8	23	35	10.5	9/16	10	100
PL 1/4-UNF	1/4	UNF 10/32	24.5	28.2	4	1/2	10	100
PL 1/4-N01	1/4	NPT 1/8	24.5	31.5	7.5	1/2	10	100
PL 1/4-N02	1/4	NPT 1/4	24.5	33.9	9.5	9/16	10	50
PL 1/4-N03	1/4	NPT 3/8	24.5	35.2	10.5	11/16	10	50
PL 5/16-N01	5/16	NPT 1/8	29.5	35	7.5	9/16	10	50
PL 5/16-N02	5/16	NPT 1/4	29.5	37	9.5	9/16	10	50
PL 5/16-N03	5/16	NPT 3/8	29.5	38.3	10.5	11/16	10	50
PL 5/16-N04	5/16	NPT 1/2	29.5	41.8	13.5	7/8	10	50
PL 3/8-N01	3/8	NPT 1/8	36	41.8	7.5	11/16	10	50
PL 3/8-N02	3/8	NPT 1/4	36	43.8	9.5	11/16	10	50
PL 3/8-N03	3/8	NPT 3/8	36	44.8	10.5	11/16	10	50
PL 3/8-N04	3/8	NPT 1/2	36	48.3	13.5	7/8	5	25
PL 1/2-N02	1/2	NPT 1/4	38.5	46.3	9.5	11/16	5	25
PL 1/2-N03	1/2	NPT 3/8	38.5	48.3	10.5	11/16	5	25
PL 1/2-N04	1/2	NPT 1/2	38.5	50.8	13.5	7/8	5	25

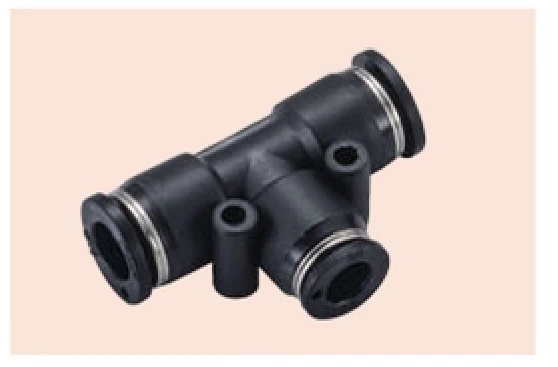

PGT reducer tee

MODEL	ØD1	ØD2	L	E	C	M1	M2	Q'ty per bag	Q'ty per box
PGT 1/4-5/32	1/4	5/32	25.5	38	3.2	8	13.8	10	50
PGT 5/16-1/4	5/16	1/4	28	43.5	3.2	9	16.6	10	50
PGT 3/8-1/4	3/8	1/4	31.5	47	4.2	11	16.6	10	50
PGT 3/8-5/16	3/8	5/16	33	55	4.2	11	18.4	5	25
PGT 1/2-5/16	1/2	5/16	35	56	4.2	12.3	18.4	5	25
PGT 1/2-3/8	1/2	3/8	39	57.5	4.2	12.3	18.4	5	25

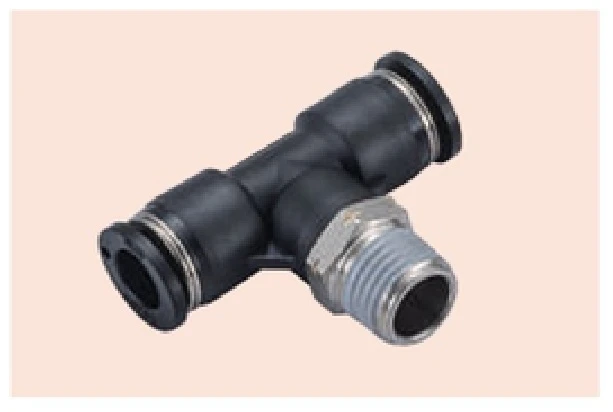

PT male branch tee

MODEL	ØD	T (Thread)	L	E	A	H (HEX)	Q'ty per bag	Q'ty per box
PT 5/32-UNF	5/32	UNF 10/32	26.3	37	4	7/16	10	100
PT 5/32-N01	5/32	NPT 1/8	29.5	37	7.5	7/16	10	50
PT 5/32-N02	5/32	NPT 1/4	32.5	37	9.5	9/16	10	50
PT 3/16-UNF	3/16	UNF 10/32	27	37	4	7/16	10	100
PT 3/16-N01	3/16	NPT 1/8	30	37	7.5	7/16	10	50
PT 3/16-N02	3/16	NPT 1/4	32.6	37	9.5	9/16	10	50
PT 3/16-N03	3/16	NPT 3/8	34	37	10.5	1/2	10	50
PT 1/4-UNF	1/4	UNF 10/32	28	38	4	1/2	10	50
PT 1/4-N01	1/4	NPT 1/8	31.5	38	7.5	1/2	10	50
PT 1/4-N02	1/4	NPT 1/4	34	38	9.5	9/16	10	50
PT 1/4-N03	1/4	NPT 3/8	35.5	38	10.5	11/16	10	50
PT 5/16-N01	5/16	NPT 1/8	35.5	44.5	7.5	9/16	10	50
PT 5/16-N02	5/16	NPT 1/4	37.5	44.5	9.5	9/16	10	50
PT 5/16-N03	5/16	NPT 3/8	38.8	44.5	10.5	11/16	10	50
PT 5/16-N04	5/16	NPT 1/2	42.1	44.5	13.5	7/8	5	25
PT 3/8-N01	3/8	NPT 1/8	43.2	55.5	7.5	11/16	5	25
PT 3/8-N02	3/8	NPT 1/4	44.3	55.5	9.5	11/16	5	25
PT 3/8-N03	3/8	NPT 3/8	45.5	55.5	10.5	11/16	5	25
PT 3/8-N04	3/8	NPT 1/2	48.9	55.5	13.5	7/8	5	20
PT 1/2-N02	1/2	NPT 1/4	46.2	58	9.5	3/4	5	25
PT 1/2-N03	1/2	NPT 3/8	47.5	58	10.5	3/4	5	25
PT 1/2-N04	1/2	NPT 1/2	50.4	58	13.5	7/8	5	20

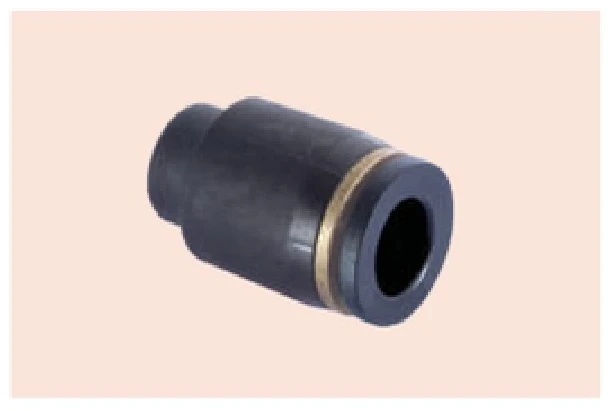

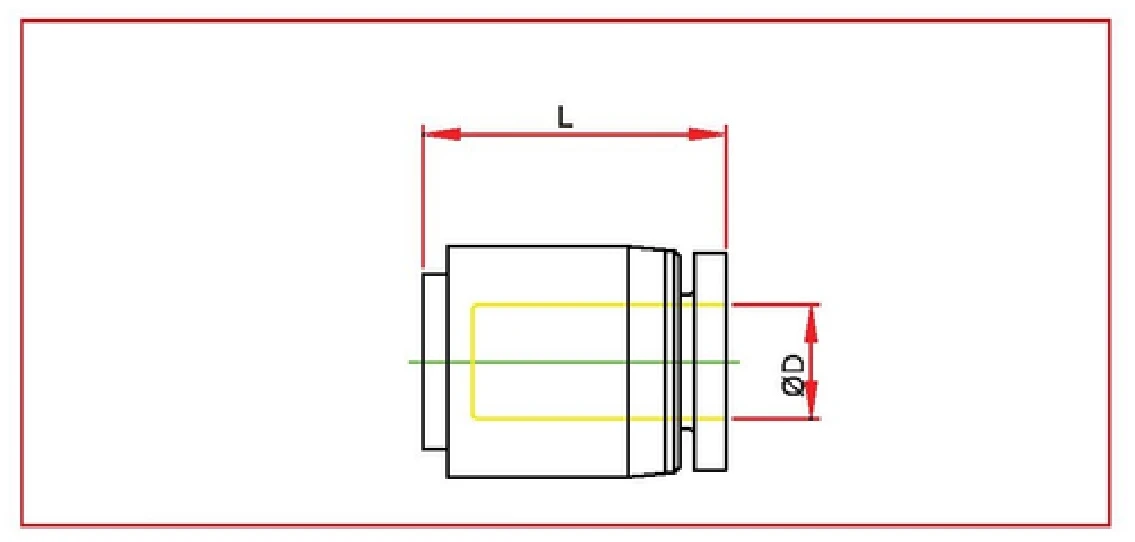

PPF cap

MODEL	ØD	L	Q'ty per bag	Q'ty per box
PPF 5/32	5/32	18	10	100
PPF 3/16	3/16	18	10	100
PPF 1/4	1/4	19	10	100
PPF 5/16	5/16	21	10	100
PPF 3/8	3/8	23	10	50
PPF 1/2	1/2	25	10	50

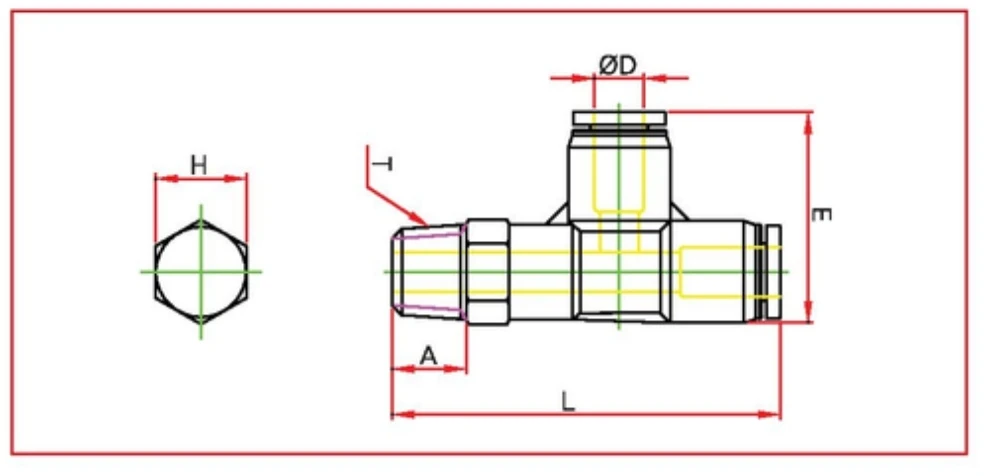

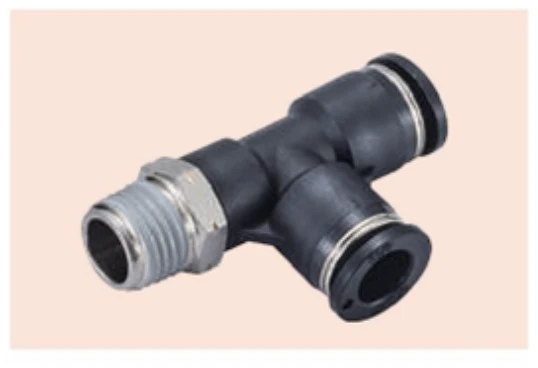

PST male run tee

MODEL	ØD	T (Thread)	L	E	A	H (Hex)	Q'ty per bag	Q'ty per box
PST 5/32-UNF	5/32	UNF 10/32	39.5	24	4	7/16	10	100
PST 5/32-N01	5/32	NPT 1/8	43	24	7.5	7/16	10	50
PST 5/32-N02	5/32	NPT 1/4	45	24	9.5	9/16	10	50
PST 3/16-UNF	3/16	UNF 10/32	40.5	24	4	7/16	10	100
PST 3/16-N01	3/16	NPT 1/8	43	24	7.5	7/16	10	50
PST 3/16-N02	3/16	NPT 1/4	45	24	9.5	9/16	10	50
PST 3/16-N03	3/16	NPT 3/8	45	24	10.5	1/2	10	50
PST 1/4-UNF	1/4	UNF 10/32	40.5	25.5	4	1/2	10	100
PST 1/4-N01	1/4	NPT 1/8	44	25.5	7.5	1/2	10	50
PST 1/4-N02	1/4	NPT 1/4	46.5	25.5	9.5	9/16	10	50
PST 1/4-N03	1/4	NPT 3/8	47	25.5	10.5	11/16	10	50
PST 5/16-N01	5/16	NPT 1/8	50	29.5	7.5	9/16	10	50
PST 5/16-N02	5/16	NPT 1/4	51	29.5	9.5	9/16	10	50
PST 5/16-N03	5/16	NPT 3/8	53	29.5	10.5	11/16	5	25
PST 5/16-N04	5/16	NPT 1/2	56	29.5	13.5	7/8	5	25
PST 3/8-N02	3/8	NPT 1/4	63	36.5	9.5	11/16	5	25
PST 3/8-N03	3/8	NPT 3/8	64	36.5	10.5	11/16	5	25
PST 3/8-N04	3/8	NPT 1/2	64	36.5	13.5	7/8	5	20
PST 1/2-N02	1/2	NPT 1/4	66	40	9.5	3/4	5	25
PST 1/2-N03	1/2	NPT 3/8	67	40	10.5	3/4	5	25
PST 1/2-N04	1/2	NPT 1/2	69.5	40	13.5	7/8	5	20

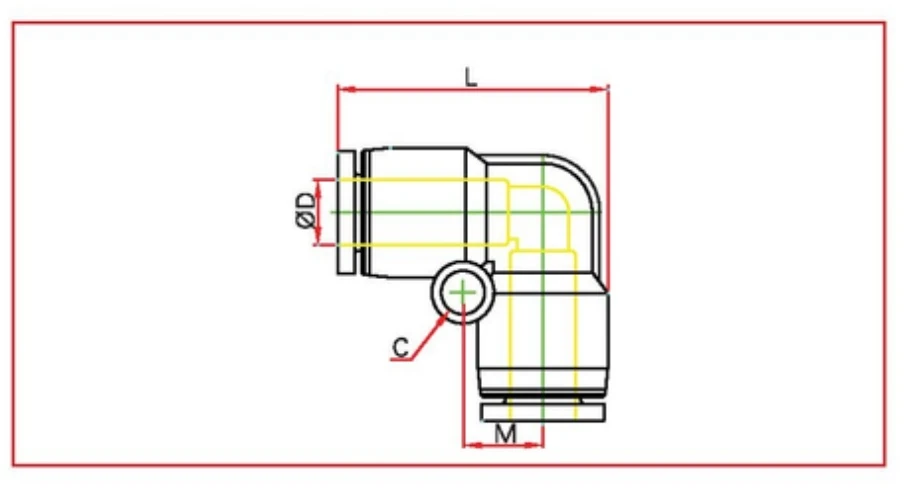

PUL union elbow

MODEL	ØD	M	L	C	Q'ty per bag	Q'ty per box
PUL 5/32	5/32	7	24	3.2	10	100
PUL 3/16	3/16	7	24	3.2	10	100
PUL 1/4	1/4	8	25	3.2	10	100
PUL 5/16	5/16	9	29	3.2	10	50
PUL 3/8	3/8	12	37	4.2	10	50
PUL 1/2	1/2	13.5	40	4.2	5	25

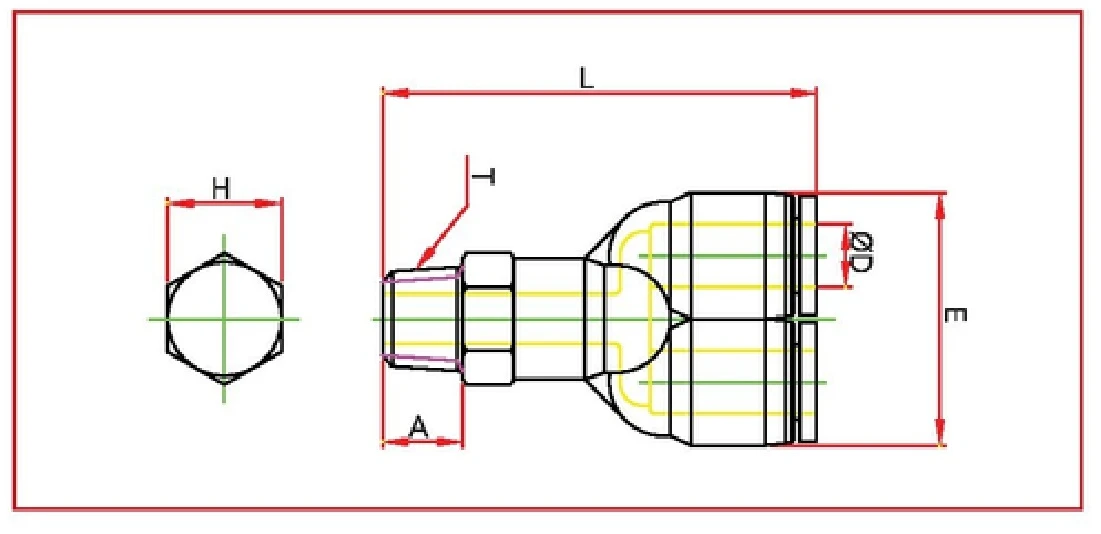

PWT male Y

MODEL	ØD	T (Thread)	L	E	A	H (HEX)	Q'ty per bag	Q'ty per box
PWT 5/32-UNF	5/32	UNF 10/32	39	22	4	7/16	10	100
PWT 5/32-N01	5/32	NPT 1/8	42.5	22	7.5	7/16	10	50
PWT 5/32-N02	5/32	NPT 1/4	46	22	9.5	9/16	10	50
PWT 3/16-UNF	3/16	UNF 10/32	39	22	4	7/16	10	100
PWT 3/16-N01	3/16	NPT 1/8	42.5	22	7.5	7/16	10	50
PWT 3/16-N02	3/16	NPT 1/4	44.5	22	9.5	9/16	10	50
PWT 3/16-N03	3/16	NPT 3/8	46	22	10.5	11/16	10	50
PWT 1/4-UNF	1/4	UNF 10/32	40	26	4	1/2	10	50
PWT 1/4-N01	1/4	NPT 1/8	45	26	7.5	1/2	10	50
PWT 1/4-N02	1/4	NPT 1/4	46.5	26	9.5	9/16	10	50
PWT 1/4-N03	1/4	NPT 3/8	47.5	26	10.5	11/16	10	50
PWT 5/16-N01	5/16	NPT 1/8	47.5	30	7.5	9/16	10	50
PWT 5/16-N02	5/16	NPT 1/4	49.5	30	9.5	9/16	10	50
PWT 5/16-N03	5/16	NPT 3/8	50.5	30	10.5	11/16	10	50
PWT 5/16-N04	5/16	NPT 1/2	53.5	30	13.5	7/8	5	25
PWT 3/8-N01	3/8	NPT 1/8	57	37	7.5	11/16	5	25
PWT 3/8-N02	3/8	NPT 1/4	58	37	9.5	11/16	5	25
PWT 3/8-N03	3/8	NPT 3/8	60	37	10.5	11/16	5	25
PWT 3/8-N04	3/8	NPT 1/2	63	37	13.5	7/8	5	20
PWT 1/2-N02	1/2	NPT 1/4	62	42.5	9.5	7/8	5	20
PWT 1/2-N03	1/2	NPT 3/8	63	42.5	10.5	7/8	5	20
PWT 1/2-N04	1/2	NPT 1/2	66	42.5	13.5	7/8	5	20

PY union Y

MODEL	ØD	L	E	C	Q'ty per bag	Q'ty per box
PY 5/32	5/32	35.5	22	3.2	10	100
PY 3/16	3/16	35.5	22	3.2	10	100
PY 1/4	1/4	37	26	3.2	10	50
PY 5/16	5/16	39.5	30	3.2	10	50
PY 3/8	3/8	50.5	37	4.2	5	25
PY 1/2	1/2	52.5	42	4.2	5	25

PLL extended male elbow

MODEL	ØD	T (Thread)	E	L	A	H (HEX)	Q'ty per bag	Q'ty per box
PLL 5/32-UNF	5/32	UNF 10/32	23.5	37	4	7/16	10	50
PLL 5/32-N01	5/32	NPT 1/8	23.5	40.3	7.5	7/16	10	50
PLL 5/32-N02	5/32	NPT 1/4	23.5	42.7	9.5	9/16	10	50
PLL 3/16-UNF	3/16	UNF 10/32	23.5	37	4	7/16	10	100
PLL 3/16-N01	3/16	NPT 1/8	23.5	40.3	7.5	7/16	10	50
PLL 3/16-N02	3/16	NPT 1/4	23.5	42.7	9.5	9/16	10	50
PLL 3/16-N03	3/16	NPT 3/8	23.5	44	10.5	11/16	10	50
PLL 1/4-UNF	1/4	UNF 10/32	25	41	4	1/2	10	100
PLL 1/4-N01	1/4	NPT 1/8	25	43.5	7.5	1/2	10	50
PLL 1/4-N02	1/4	NPT 1/4	25	44.5	9.5	9/16	10	50
PLL 1/4-N03	1/4	NPT 3/8	25	47.2	10.5	11/16	10	50
PLL 5/16-N01	5/16	NPT 1/8	30	49	7.5	9/16	10	50
PLL 5/16-N02	5/16	NPT 1/4	30	51	9.5	9/16	10	50
PLL 5/16-N03	5/16	NPT 3/8	30	52	10.5	11/16	5	25
PLL 5/16-N04	5/16	NPT 1/2	30	55.5	13.5	7/8	5	25
PLL 3/8-N01	3/8	NPT 1/8	36	58.5	7.5	11/16	5	25
PLL 3/8-N02	3/8	NPT 1/4	36	60.8	9.5	11/16	5	25
PLL 3/8-N03	3/8	NPT 3/8	36	61.8	10.5	11/16	5	25
PLL 3/8-N04	3/8	NPT 1/2	36	65.3	13.5	7/8	5	25
PLL 1/2-N02	1/2	NPT 1/4	38.5	70	9.5	3/4	5	25
PLL 1/2-N03	1/2	NPT 3/8	38.5	68.3	10.5	3/4	5	25
PLL 1/2-N04	1/2	NPT 1/2	38.5	67.5	13.5	7/8	5	25

PW reducer Y

MODEL	ØD1	ØD2	L	E	C	Q'ty per bag	Q'ty per box
PW 3/16-5/32	3/16	5/32	36.5	22	3.2	10	100
PW 1/4-5/32	1/4	5/32	36	22	3.2	10	100
PW 1/4-3/16	1/4	3/16	36	22	3.2	10	100
PW 5/16-5/32	5/16	5/32	37	26	3.2	10	50
PW 5/16-1/4	5/16	1/4	37	26	3.2	10	50
PW 3/8-1/4	3/8	1/4	43.5	29	3.2	10	50
PW 3/8-5/16	3/8	5/16	44	29	3.2	10	50
PW 1/2-5/16	1/2	5/16	51	36.5	4.2	5	25
PW 1/2-3/8	1/2	3/8	51	36.5	4.2	5	25

PLF extended female elbow

MODEL	ØD	T (Thread)	L	E	A	H (HEX)	Q'ty per bag	Q'ty per box
PLF 5/32-UNF	5/32	UNF 10/32	24.5	23.5	7	10	10	100
PLF 5/32-N01	5/32	NPT 1/8	28.5	23.5	8.5	14	10	50
PLF 5/32-N02	5/32	NPT 1/4	31	23.5	10.5	17	10	50
PLF 3/16-UNF	3/16	UNF 10/32	24.5	23.5	7	10	10	100
PLF 3/16-N01	3/16	NPT 1/8	28.5	23.5	8.5	14	10	50
PLF 3/16-N02	3/16	NPT 1/4	31	23.5	10.5	17	10	50
PLF 1/4-UNF	1/4	UNF 10/32	25.5	24	7	12	10	100
PLF 1/4-N01	1/4	NPT 1/8	29.5	24	8.5	14	10	50
PLF 1/4-N02	1/4	NPT 1/4	32	24	10	17	10	50
PLF 1/4-N03	1/4	NPT 3/8	33.5	25	11.5	21	10	50
PLF 5/16-N01	5/16	NPT 1/8	33	29.5	8.5	14	10	50
PLF 5/16-N02	5/16	NPT 1/4	35.5	29.5	10.5	17	10	50
PLF 5/16-N03	5/16	NPT 3/8	37	29.5	11.5	20	10	50
PLF 3/8-N01	3/8	NPT 1/8	34.5	36	8.5	17	5	25
PLF 3/8-N02	3/8	NPT 1/4	41	36	10.5	17	5	25
PLF 3/8-N03	3/8	NPT 3/8	43	36	11.5	21	5	25
PLF 3/8-N04	3/8	NPT 1/2	46	36	14.5	24	5	25
PLF 1/2-N02	1/2	NPT 1/4	44.5	38.5	10.5	19	5	25
PLF 1/2-N03	1/2	NPT 3/8	46	38.5	11.5	21	5	25
PLF 1/2-N04	1/2	NPT 1/2	49	38.5	14.5	24	5	25

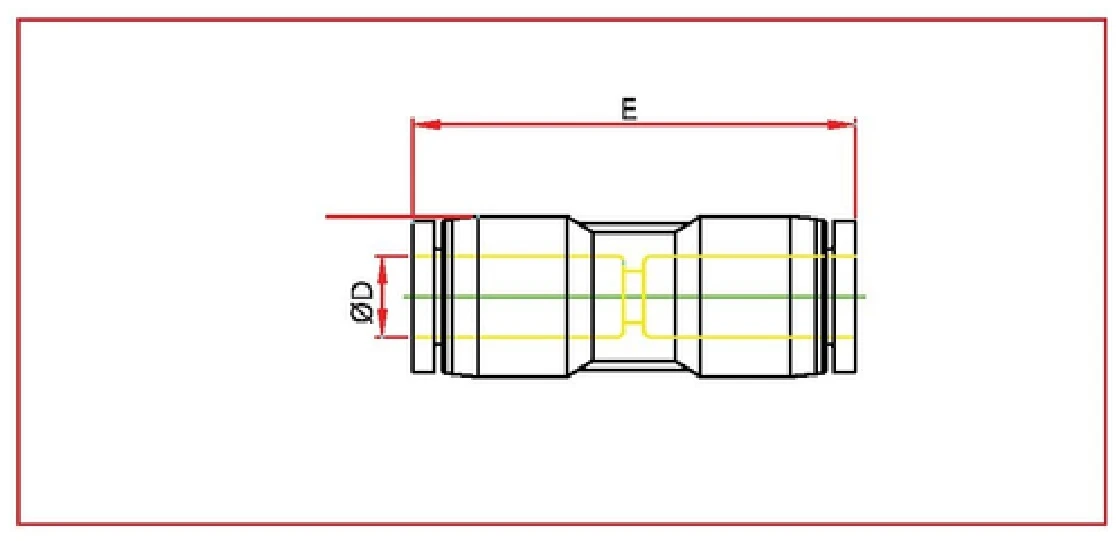

PUC union straight

MODEL	ØD	E	Q'ty per bag	Q'ty per box
PUC 5/32	5/32	32	10	100
PUC 3/16	3/16	33	10	100
PUC 1/4	1/4	34.5	10	100
PUC 5/16	5/16	38.5	10	50
PUC 3/8	3/8	47.5	10	50
PUC 1/2	1/2	49	5	25

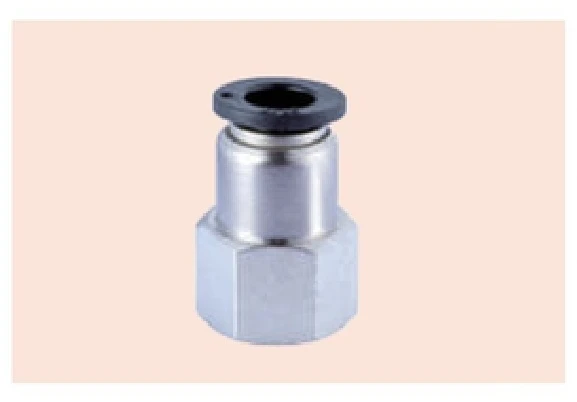

PCF female straight

MODEL	ØD	T	L	A	H (HEX)	Q'ty per bag	Q'ty per box
PCF 5/32-N01	5/32	NPT 1/8	24	8.5	14	10	100
PCF 5/32-N02	5/32	NPT 1/4	26.5	11	17	10	100

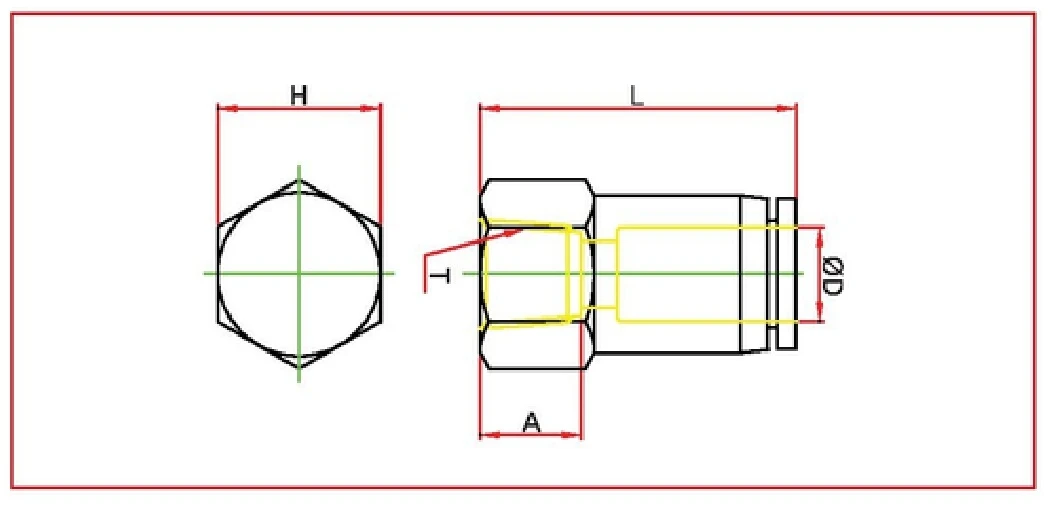

PCF 3/16-N01	3/16	NPT 1/8	23.5	8.5	14	10	100
PCF 3/16-N02	3/16	NPT 1/4	26.5	11	17	10	100
PCF 1/4-N01	1/4	NPT 1/8	25	8.5	14	10	100
PCF 1/4-N02	1/4	NPT 1/4	27	11	17	10	100
PCF 1/4-N03	1/4	NPT 3/8	28	12	20	10	50
PCF 5/16-N01	5/16	NPT 1/8	26	8.5	14	10	100
PCF 5/16-N02	5/16	NPT 1/4	28.5	10	17	10	100
PCF 5/16-N03	5/16	NPT 3/8	30	12	20	10	50
PCF 3/8-N01	3/8	NPT 1/8	30	8.5	13	24	10	50
PCF 3/8-N01	3/8	NPT 1/8	29	8.5	17	10	50
PCF 3/8-N02	3/8	NPT 1/4	32	11	17	10	50
PCF 3/8-N03	3/8	NPT 3/8	33	12	20	10	50
PCF 3/8-N04	3/8	NPT 1/2	38	14	24	10	50
PCF 1/2-N02	1/2	NPT 1/4	35	11	21	10	50
PCF 1/2-N03	1/2	NPT 3/8	34.5	12	21	10	50
PCF 1/2-N04	1/2	NPT 1/2	36.5	14	24	5	25

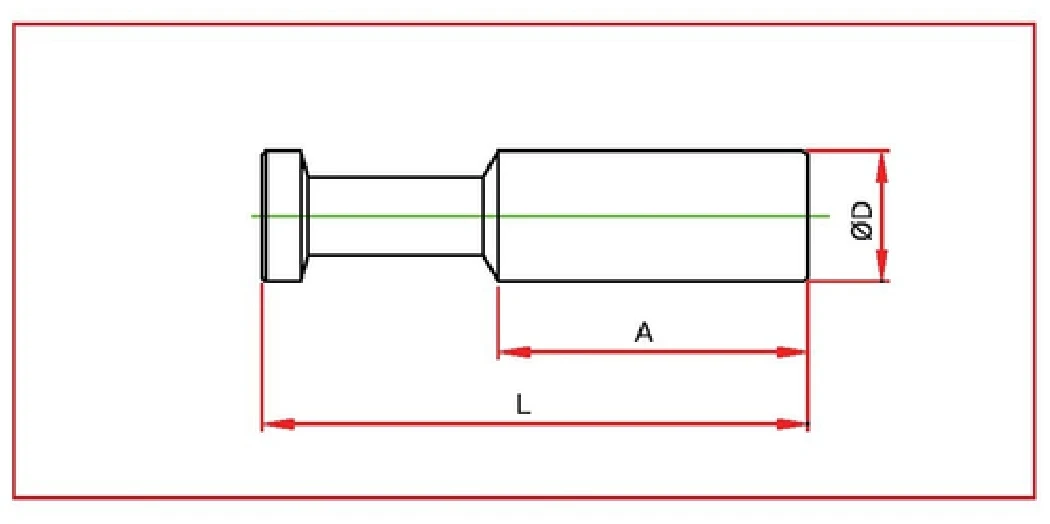

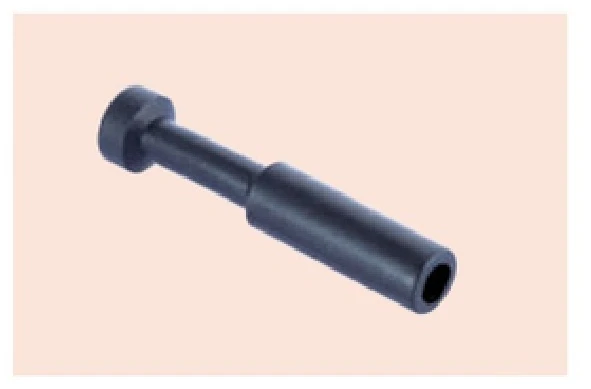

PP plug

MODEL	ØD	L	A	Q'ty per bag	Q'ty per box
PP 5/32	5/32	28	15	10	100
PP 3/16	3/16	28	15	10	100
PP 1/4	1/4	33	17	10	100
PP 5/16	5/16	36	18	10	100
PP 3/8	3/8	42.5	22	10	100
PP 1/2	1/2	43	22	10	100

PMF bulkhead female straight

MODEL	ØD	T1	T2	L	H1 (HEX)	H2 (HEX)	Q'ty per bag	Q'ty per box
PMF 5/32-N01	5/32	NPT 1/8	M12xP1.0	24	14	14	10	100
PMF 5/32-N02	5/32	NPT 1/4	M12xP1.0	26.5	17	14	10	100
PMF 3/16-N01	3/16	NPT 1/8	M12xP1.0	24	14	14	10	100
PMF 1/4-N01	1/4	NPT 1/8	M14xP1.0	25	17	17	10	100
PMF 1/4-N02	1/4	NPT 1/4	M14xP1.0	27	17	17	10	100
PMF 1/4-N03	1/4	NPT 3/8	M14xP1.0	28	20	17	10	50
PMF 5/16-N01	5/16	NPT 1/8	M16xP1.0	27	19	19	10	50
PMF 5/16-N02	5/16	NPT 1/4	M16xP1.0	29	19	19	10	50
PMF 5/16-N03	5/16	NPT 3/8	M16xP1.0	29.5	20	19	10	50
PMF 5/16-N04	5/16	NPT 1/2	M16xP1.0	31.5	24	19	5	25
PMF 3/8-N01	3/8	NPT 1/8	M20xP1.0	30.5	24	24	10	50
PMF 3/8-N02	3/8	NPT 1/4	M20xP1.0	33	24	24	10	50
PMF 3/8-N03	3/8	NPT 3/8	M20xP1.0	34	24	24	10	50
PMF 1/2-N02	1/2	NPT 1/4	M22xP1.0	34	27	27	5	25
PMF 1/2-N03	1/2	NPT 3/8	M22xP1.0	34	27	27	5	25
PMF 1/2-N04	1/2	NPT 1/2	M22xP1.0	36	27	27	5	25

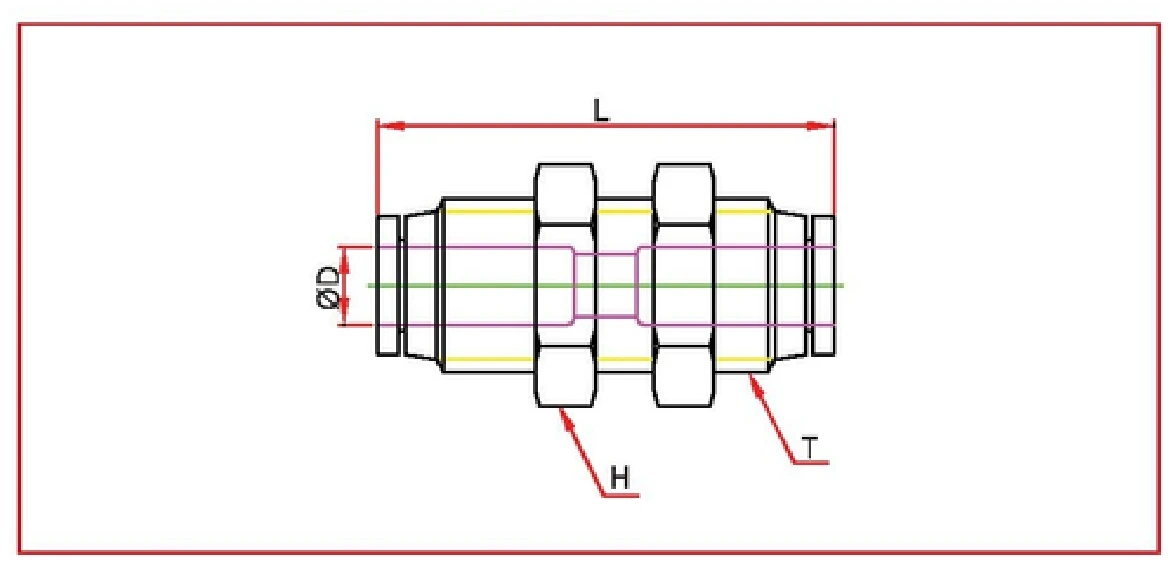

PMM bulkhead union

MODEL	ØD	T	L	H (HEX)	Q'ty per bag	Q'ty per box
PMM 5/32	5/32	M12xP1.0	30.5	14	10	100
PMM 3/16	3/16	M12xP1.0	30.5	14	10	100
PMM 1/4	1/4	M14xP1.0	31	17	10	100
PMM 5/16	5/16	M16xP1.0	35	19	10	50
PMM 3/8	3/8	M20xP1.0	41	24	5	25
PMM 1/2	1/2	M22xP1.0	44	27	5	25

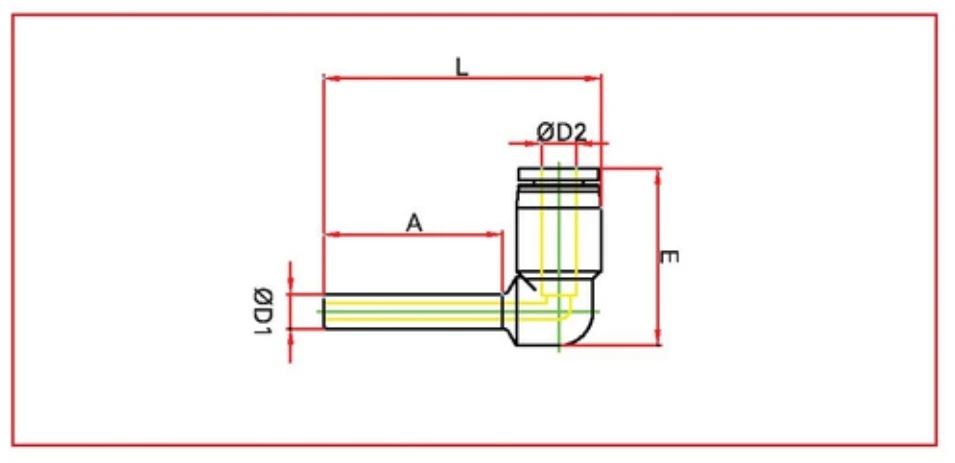

PLJ plug-in elbow

MODEL	ØD1	ØD2	L	E	A	Q'ty per bag	Q'ty per box
PLJ 5/32	5/32	5/32	38	23.5	20.5	10	100
PLJ 1/4	1/4	1/4	41	24	22	10	100
PLJ 5/16	5/16	5/16	46.5	29.5	24	10	50
PLJ 3/8	3/8	3/8	55	36	25.5	10	50
PLJ 1/2	1/2	1/2	59	37	27	5	25
PLJ 1/4-5/32	1/4	5/32	39.5	23.5	22	10	100
PLJ 5/16-1/4	5/16	1/4	43.5	24	24	10	100
PLJ 3/8-5/16	3/8	5/16	49	29.5	25.5	10	50
PLJ 1/2-3/8	1/2	3/8	59.5	36	27	5	25

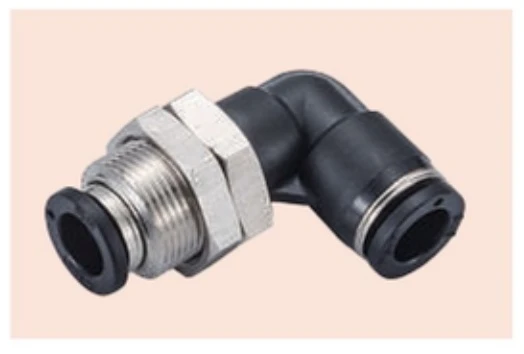

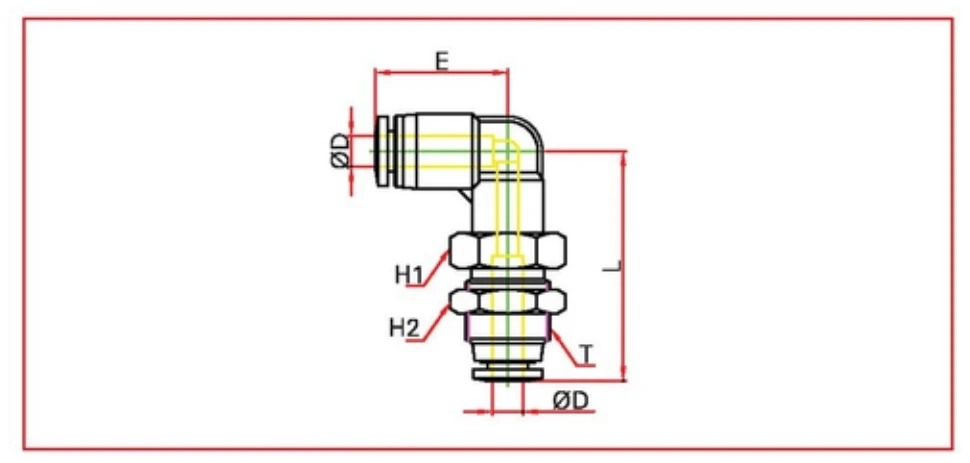

PLM bulkhead union elbow

MODEL	ØD	T	L	E	H1 (HEX)	H2 (HEX)	Q'ty per bag	Q'ty per box
PLM 5/32	5/32	M12xP1.0	33.5	23	14	14	10	50
PLM 3/16	3/16	M12xP1.0	33.5	23	14	14	10	50
PLM 1/4	1/4	M14xP1.0	38	24	17	17	10	50
PLM 5/16	5/16	M16xP1.0	43	29	19	19	10	50
PLM 3/8	3/8	M20xP1.0	50	36	24	24	5	25
PLM 1/2	1/2	M22xP1.0	57	38	27	27	5	25

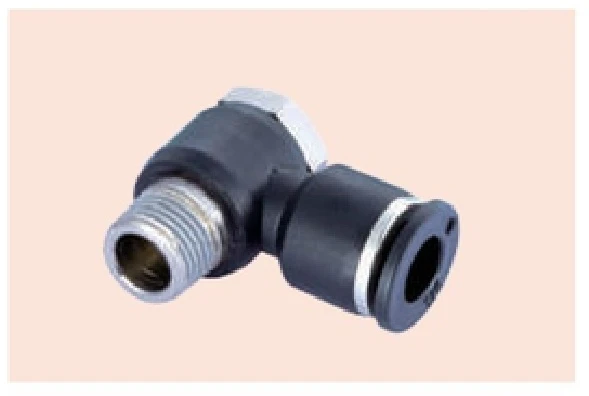

PH male banjo

MODEL	ØD	T	E	L	A	H (HEX)	Q'ty per bag	Q'ty per box
PH 5/32-UNF	5/32	UNF 10/32	25	17.5	4	8	10	100
PH 5/32-N01	5/32	NPT 1/8	29	23.6	7	12	10	50
PH 5/32-N02	5/32	NPT 1/4	33	26.5	9.5	14	10	50
PH 3/16-UNF	3/16	UNF 10/32	25	17.5	4	8	10	100
PH 3/16-N01	3/16	NPT 1/8	30	22.6	7	12	10	50
PH 3/16-N02	3/16	NPT 1/4	33	26.5	9.5	14	10	50
PH 1/4-UNF	1/4	UNF 10/32	26.5	17.5	4	8	10	100
PH 1/4-N01	1/4	NPT 1/8	30	23	7	12	10	50
PH 1/4-N02	1/4	NPT 1/4	34	26.5	9.5	14	10	50
PH 1/4-N03	1/4	NPT 3/8	38	33	10.5	19	5	25
PH 1/4-N04	1/4	NPT 1/2	46	39.1	14	24	5	25
PH 5/16-N01	5/16	NPT 1/8	32	23	7	12	10	50
PH 5/16-N02	5/16	NPT 1/4	37	26.5	9.5	14	10	50
PH 5/16-N03	5/16	NPT 3/8	40	33	10.5	19	5	25
PH 5/16-N04	5/16	NPT 1/2	46	39.1	14	24	5	25
PH 3/8-N01	3/8	NPT 1/8	37.5	24	7	12	10	50
PH 3/8-N02	3/8	NPT 1/4	41	26.5	9.5	14	10	50
PH 3/8-N03	3/8	NPT 3/8	44	32	10.5	17.5	5	25
PH 3/8-N04	3/8	NPT 1/2	50	39.1	14	24	5	20
PH 1/2-N02	1/2	NPT 1/4	42.5	26.5	9.5	14	5	25
PH 1/2-N03	1/2	NPT 3/8	46	33	10.5	19	5	25
PH 1/2-N04	1/2	NPT 1/2	50	39.1	14	24	5	20

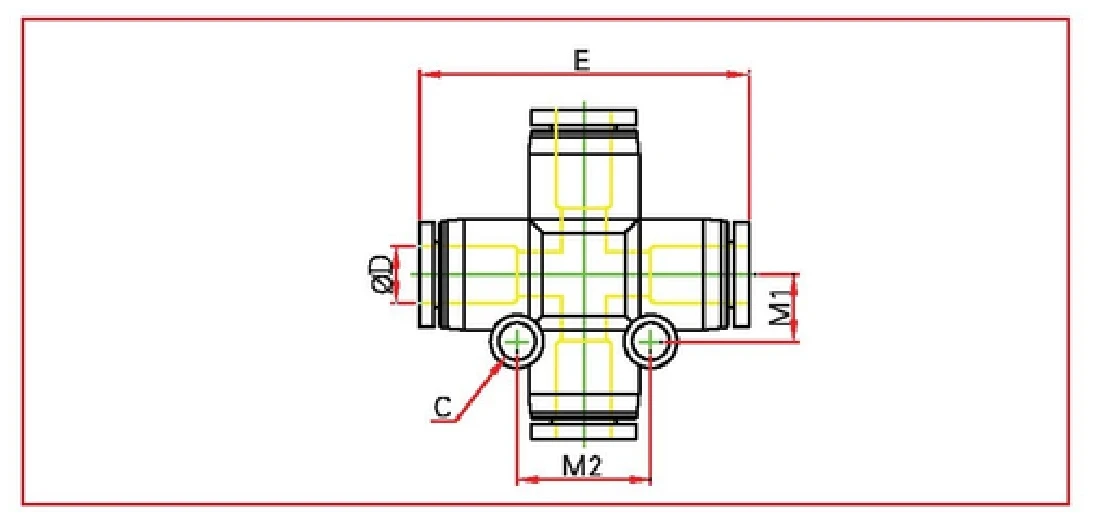

PZA union cross

MODEL	ØD	M1	M2	E	C	Q'ty per bag	Q'ty per box
PZA 5/32	5/32	7.4	14.8	36.5	3.2	10	50
PZA 3/16	3/16	7.4	14.8	36.5	3.2	10	50
PZA 1/4	1/4	7.9	15.8	38	3.2	10	50
PZA 5/16	5/16	9	18	44.8	3.2	5	25
PZA 3/8	3/8	11.8	23	56.8	4.2	5	20
PZA 1/2	1/2	13.3	26.6	58.6	4.2	5	15

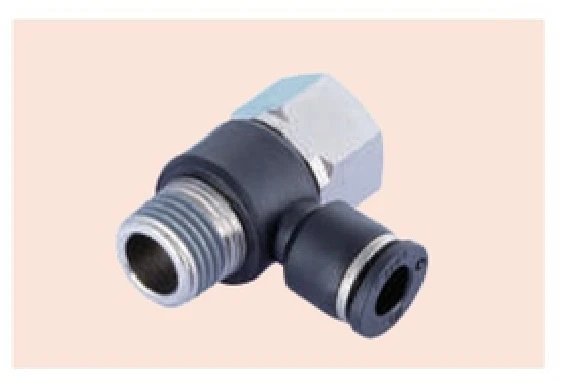

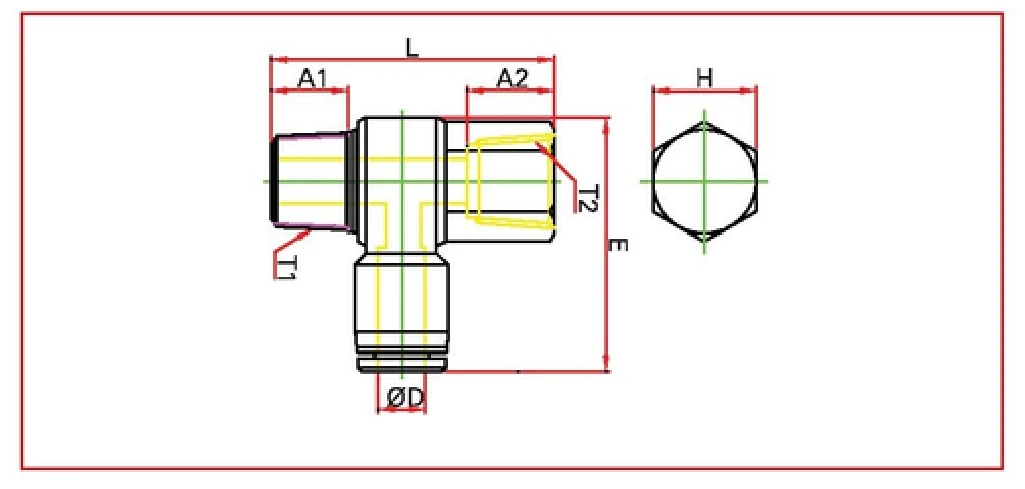

PHF female banjo

MODEL	ØD	T1	T2	L	E	A1	A2	H (Hex)	Q'ty per bag	Q'ty per box
PHF 5/32-UNF	5/32	UNF 10/32	UNF 10/32	20	25	4	5	8	10	100
PHF 5/32-N01	5/32	NPT 1/8	NPT 1/8	28	29.5	7.5	6.5	14	10	50
PHF 5/32-N02	5/32	NPT 1/4	NPT 1/4	33	33	9.5	8.5	17	10	50
PHF 3/16-UNF	3/16	UNF 10/32	UNF 10/32	20	25	4	5	8	10	100
PHF 3/16-N01	3/16	NPT 1/8	NPT 1/8	28	29.5	7.5	6.5	14	10	50
PHF 3/16-N02	3/16	NPT 1/4	NPT 1/4	33	33	9.5	8.5	17	10	50
PHF 1/4-UNF	1/4	UNF 10/32	UNF 10/32	28	26.5	4	5	8	10	100
PHF 1/4-N01	1/4	NPT 1/8	NPT 1/8	28	31	7.5	6.5	14	10	50
PHF 1/4-N02	1/4	NPT 1/4	NPT 1/4	33	34	9.5	8.5	17	10	50
PHF 1/4-N03	1/4	NPT 3/8	NPT 3/8	38.9	10.5	9.5	21	5	25
PHF 1/4-N04	1/4	NPT 1/2	NPT 1/2	46.6	46	14	11.5	24	5	25
PHF 5/16-N01	5/16	NPT 1/8	NPT 1/8	28	32.5	7.5	6.5	14	10	50
PHF 5/16-N02	5/16	NPT 1/4	NPT 1/4	33	37.5	9.5	8.5	17	10	50
PHF 5/16-N03	5/16	NPT 3/8	NPT 3/8	38.9	42	10.5	9.5	21	5	25
PHF 5/16-N04	5/16	NPT 1/2	NPT 1/2	46.6	46	14	11.5	24	5	25
PHF 3/8-N01	3/8	NPT 1/8	NPT 1/8	28	37	7.5	6.5	14	5	25
PHF 3/8-N02	3/8	NPT 1/4	NPT 1/4	33	41	9.5	8.5	17	5	25
PHF 3/8-N03	3/8	NPT 3/8	NPT 3/8	38.9	42	10.5	9.5	21	5	25
PHF 3/8-N04	3/8	NPT 1/2	NPT 1/2	46.6	49.5	14	11.5	24	5	15
PHF 1/2-N02	1/2	NPT 1/4	NPT 1/4	33	42.5	9.5	8.5	17	5	25
PHF 1/2-N03	1/2	NPT 3/8	NPT 3/8	38.9	46	10.5	9.5	21	5	20
PHF 1/2-N04	1/2	NPT 1/2	NPT 1/2	46.6	50	14	11.5	24	5	15

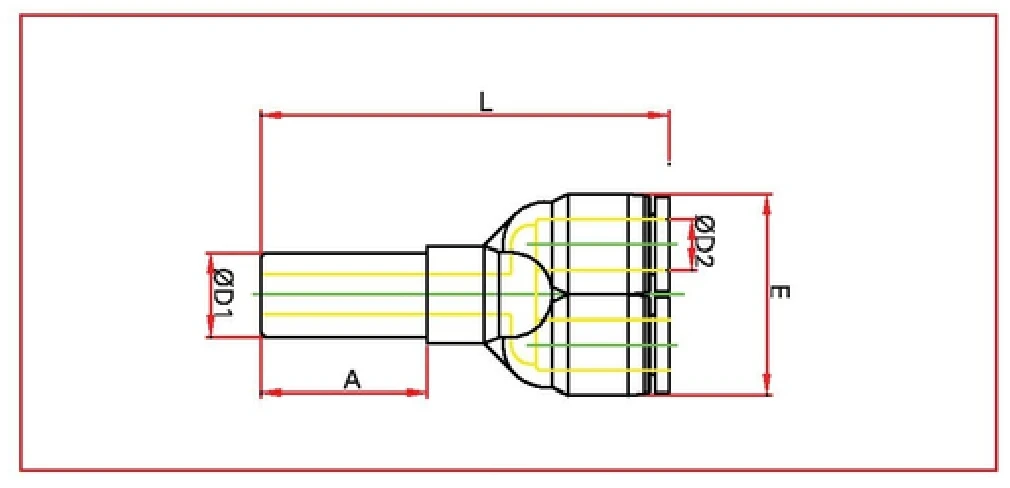

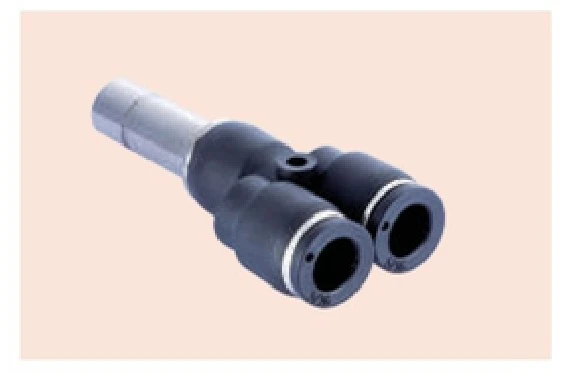

PWJ plug-in Y

MODEL	ØD1	ØD2	L	A	E	Q'ty per bag	Q'ty per box
PWJ 1/4-5/32	1/4	5/32	52.5	21	22	10	50
PWJ 5/16-1/4	5/16	1/4	56	23.5	26	10	50
PWJ 3/8-5/16	3/8	5/16	63.5	26.5	29.5	5	25
PWJ 1/2-3/8	1/2	3/8	72	28	37	5	25

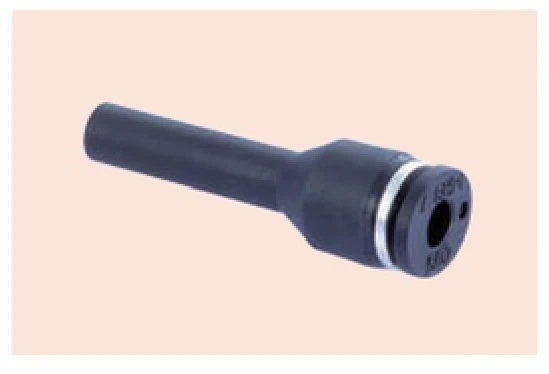

PGJ plug-in reducer

MODEL	ØD1	ØD2	L	A	Q'ty per bag	Q'ty per box
PGJ 1/4-5/32	1/4	5/32	38.5	22	10	100
PGJ 5/16-5/32	5/16	5/32	39	25	10	100
PGJ 5/16-1/4	5/16	1/4	42	25	10	100
PGJ 3/8-1/4	3/8	1/4	41	26.5	10	100
PGJ 3/8-5/16	3/8	5/16	45.5	26.5	10	100
PGJ 1/2-1/4	1/2	1/4	41	26.5	10	100
PGJ 1/2-5/16	1/2	5/16	43	26.5	10	50
PGJ 1/2-3/8	1/2	3/8	51	26.5	10	50

PKD male reducer triple branch

MODEL	ØD1	ØD2	L	E	M1	M2	C	A	H (Hex)	T	Q'ty per bag	Q'ty per box
PKD 5/32-N01	5/32	5/32	68	27	9	41.5	3.2	8	10	NPT 1/8	5	25
PKD 5/32-N02	5/32	5/32	70.5	27	9	41.5	3.2	8	12	NPT 1/4	5	25
PKD 1/4-5/32-N01	1/4	5/32	68	27	9	41.5	3.2	8	12	NPT 1/8	5	25
PKD 1/4-5/32-N02	1/4	5/32	70.5	27	9	41.5	3.2	10	14	NPT 1/4	5	25
PKD 5/16-5/32-N01	5/16	5/32	70.5	27	9	41.5	3.2	8	14	NPT 1/8	5	25
PKD 1/4-N01	1/4	1/4	68	27	9	41.5	3.2	8	12	NPT 1/8	5	25
PKD 1/4-N02	1/4	1/4	70.5	27	9	41.5	3.2	10	14	NPT 1/4	5	25
PKD 5/16-1/4-N01	5/16	1/4	68	27	9	41.5	3.2	8	14	NPT 1/8	5	25
PKD 5/16-1/4-N02	5/16	1/4	70.5	27	9	41.5	3.2	10	14	NPT 1/4	5	25
PKD 3/8-N02	3/8	3/8	88.5	33	12	47.8	4.2	10	17	NPT 1/4	5	20
PKD 3/8-N03	3/8	3/8	90.3	33	12	47.8	4.2	11	17	NPT 3/8	5	20
PKD 3/8-1/4-N02	3/8	1/4	89.3	33	12	47.8	4.2	10	17	NPT 1/4	5	15
PKD 3/8-5/16-N03	3/8	5/16	90.3	33	12	47.8	4.2	11	17	NPT 3/8	5	15
PKD 3/8-N02	3/8	3/8	98.7	37.5	12	56.5	3.5	10	17	NPT 1/4	5	15
PKD 3/8-N03	3/8	3/8	100	37.5	12	56.5	3.5	11	17	NPT 3/8	5	15
PKD 3/8-N04	3/8	3/8	103.5	37.5	12	56.5	3.5	14	21	NPT 1/2	5	15
PKD 1/2-5/16-N03	1/2	5/16	100	37	15.5	59.5	4.5	11	19	NPT 3/8	5	15
PKD 1/2-3/8-N03	1/2	3/8	100	38	15.5	59.5	4.5	11	19	NPT 3/8	5	15
PKD 1/2-3/8-N04	1/2	3/8	103.5	38	15.5	59.5	4.5	14	21	NPT 1/2	5	15
PKD 1/2-N03	1/2	1/2	104.5	39.7	15.5	67.5	4.5	11	19	NPT 3/8	5	15
PKD 1/2-N04	1/2	1/2	107.5	39.7	15.5	67.5	4.5	14	21	NPT 1/2	5	15

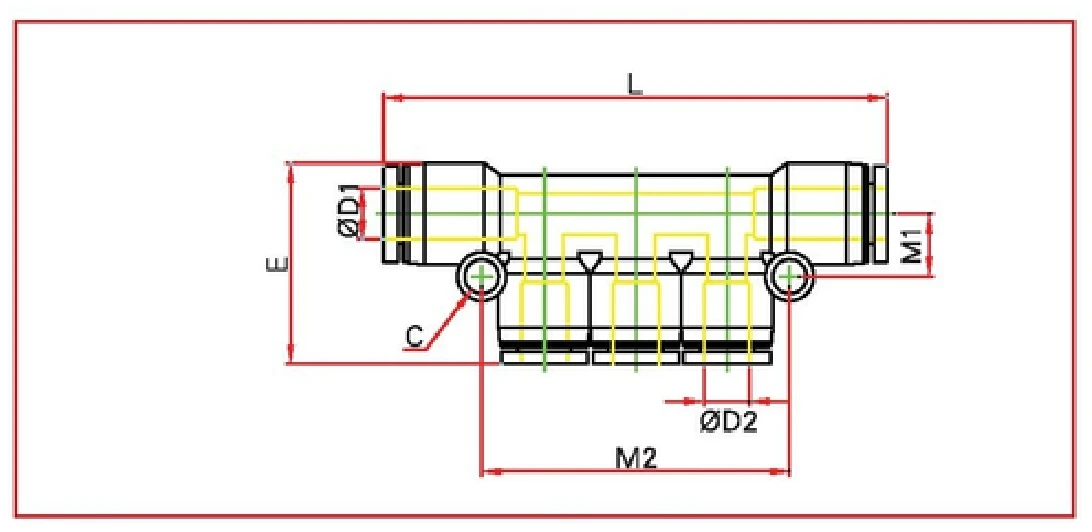

PKG reducer triple branch union

MODEL	ØD1	ØD2	M1	M2	L	E	C	Q'ty per bag	Q'ty per box
PKG 5/32	5/32	5/32	9	41.5	59	27	3.2	5	25
PKG 1/4	1/4	1/4	9	41.5	59.5	27	3.2	5	25
PKG 5/16	5/16	5/16	12	47.8	79.5	33	4.2	5	20
PKG 3/8	3/8	3/8	12	56.5	90.9	37.5	3.5	5	20
PKG 1/2	1/2	1/2	15.5	67.5	99.4	39.5	4.5	5	20
PKG 1/4-5/32	1/4	5/32	9	41.5	59.5	27	3.2	5	25
PKG 5/16-1/4	5/16	1/4	9	41.5	80	27	3.2	5	25
PKG 3/8-1/4	3/8	1/4	12	47.8	82.5	32.5	4.2	5	25
PKG 3/8-5/16	3/8	5/16	12	47.8	82.5	32.5	4.2	5	20
PKG 1/2-5/16	1/2	5/16	15.5	59.5	91.8	37	4.5	5	20
PKG 1/2-3/8	1/2	3/8	15.5	59.5	91.8	38	4.5	5	20

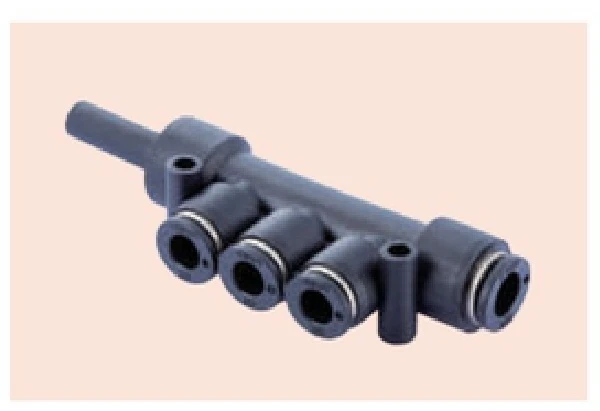

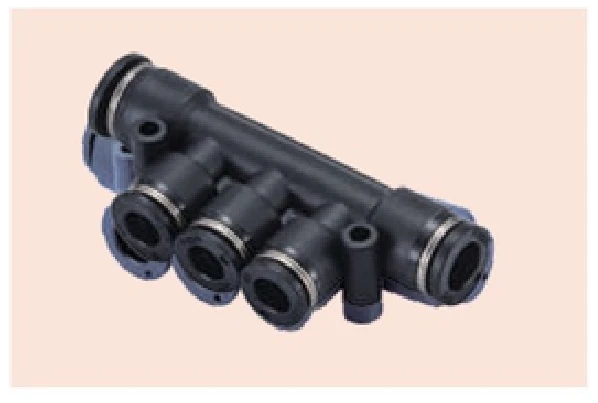

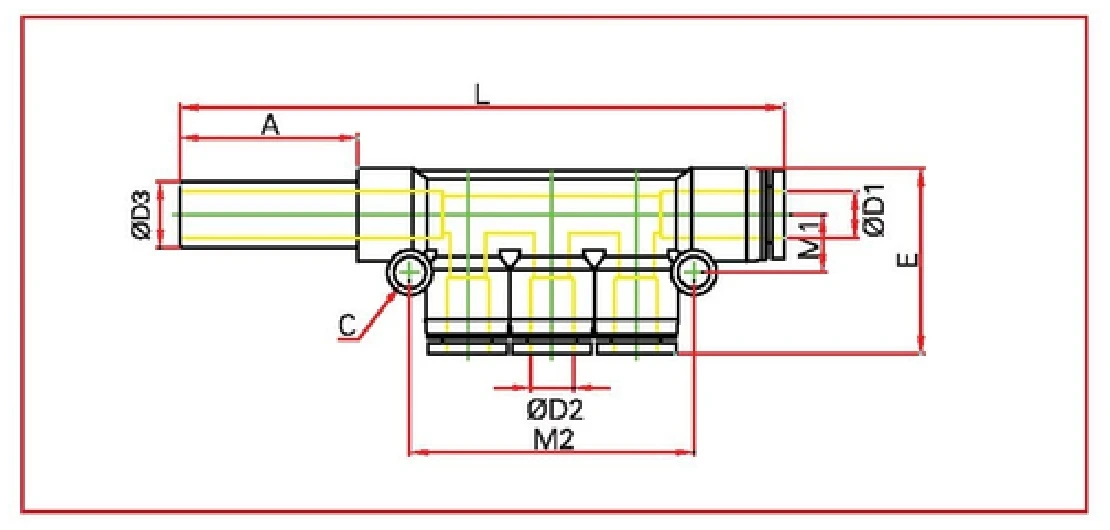

PKJ reducer triple branch union

MODEL	ØD1	ØD2	ØD3	L	A	E	C	M1	M2	Q'ty per bag	Q'ty per box
PKJ 5/32	5/32	5/32	5/32	76	20.5	27	3.2	9	41.5	5	25
PKJ 1/4-5/32	1/4	5/32	1/4	77.5	22	27	3.2	9	41.5	5	25
PKJ 1/4	1/4	1/4	1/4	77.5	22	27	3.2	9	41.5	5	25
PKJ 5/16-5/32	5/16	5/32	5/16	80	24	27	3.2	9	41.5	5	25
PKJ 5/16-1/4	5/16	1/4	5/16	80	24	27	3.2	9	41.5	5	25
PKJ 5/16	5/16	5/16	5/16	96.5	24	33	4.2	12	47.8	5	25
PKJ 3/8-5/16	3/8	5/16	3/8	101	25.5	32.5	4.2	12	47.8	5	15
PKJ 3/8	3/8	3/8	3/8	110.5	25.5	37.5	4.5	12	56.5	5	12
PKJ 1/2-5/16	1/2	5/16	1/2	113.5	27	37	4.5	15.5	59.5	3	12
PKJ 1/2-3/8	1/2	3/8	1/2	113.5	27	38	4.5	15.5	59.5	3	12
PKJ 1/2	1/2	1/2	1/2	121	27	39.5	4.5	15.5	67.5	3	12

PYJ plug-in J

MODEL	ØD1	ØD2	L	A	E	Q'ty per bag	Q'ty per box
PYJ 5/32	5/32	5/32	52	20.5	22	10	50
PYJ 1/4-5/32	1/4	5/32	54	22	22	10	50
PYJ 1/4	1/4	1/4	54.5	22	26	10	50
PYJ 5/16-1/4	5/16	1/4	56.5	24	26	10	50
PYJ 5/16	5/16	5/16	59	24	29.5	10	50
PYJ 3/8-5/16	3/8	5/16	64	25.5	29.5	5	25
PYJ 3/8	3/8	3/8	69.5	25.5	37	5	25
PYJ 1/2-3/8	1/2	3/8	73.5	27	37	5	25
PYJ 1/2	1/2	1/2	74	27	42	5	20

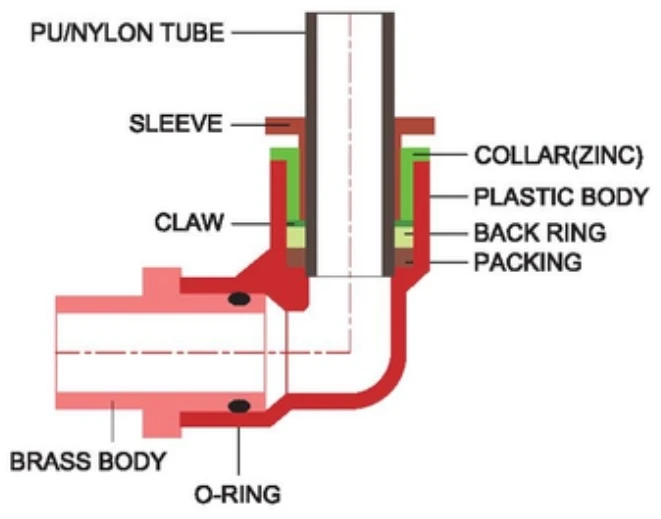

PRODUCT DESCRIPTION

FEATURES/BENEFITS

One-Touch push-to-connect configuration allows for an instant tubing connection.
All PC models are useful for piping in confined space, due to its six-angle wrench processing inside.
Immediate strong engineering plastic(POM) sleeve disconnection by pressing the sleeve and then simply removing tube from fitting.
Fittings are already equipped with Teflon-treatment or o-ring on the thread.
Nickel-plated brass body ensures anti-contamination properties for an extended product life.

SPECIFICATION

Applicable Fluid Type: AIR (No other type of gas or liquid)
Working Pressure Range: 0~150PSI / 0~9.9Kgf/cm²(0~990KPa)
Negative Pressure: -29.5in Hg / -750mmHg(-750Torr)
Working Temperature Range: 32~140°F / 0~60°C

ORDER

PLACING AN ORDER OR REQUEST

Specifying Standard Items: Please specify the following:

1. Series(Item)Number
2. Tube Outside Dia.
3. Thread Size

THREAD SIZE

01: 1/8" / N01:1/8"NPT / G01:1/8"BSPP
02: 1/4" / N02:1/4"NPT / G02:1/4"BSPP
03: 3/8" / N03:3/8"NPT / G03:3/8"BSPP
04: 1/2" / N04:1/2"NPT / G04:1/2"BSPP

Example of a request

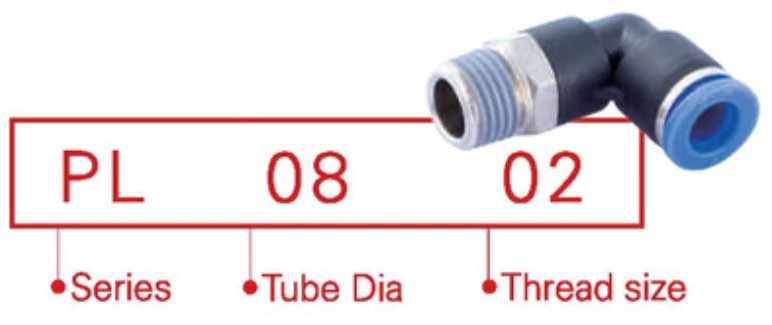

PL series one touch fitting, 8mm tube with 1/4" BSPT thread

PC series one touch fitting, 1/4" tube with 1/4" NPT thread

SC series G type one touch fitting, 8mm tube with 1/4" BSPP thread

PNEUMATICS SERIES

ONE-TOUCH FITTINGS

SPEED CONTROLLERS

PNEUMATICS SERIES

COMPACT ONE-TOUCH FITTINGS

STOP FITTINGS

CHECK VALVES

HAND VALVES

SILENCERS

TUBE CUTTER

AIR BRAKE SERIES

CONNECTOR TYPE

ELBOW TYPE

UNION TYPE

ONE-TOUCH FITTINGS

FEATURES/BENEFITS

SPECIFICATION

PLACING AN ORDER OR REQUEST

THREAD SIZE

Example of a request

About

Company

Quick Links

Contact
